Stainless Steel Concealed Shower Mixer
- Warranty: 1-year parts warranty and 10-year replacement warranty.
- Free standard delivery Australia-wide

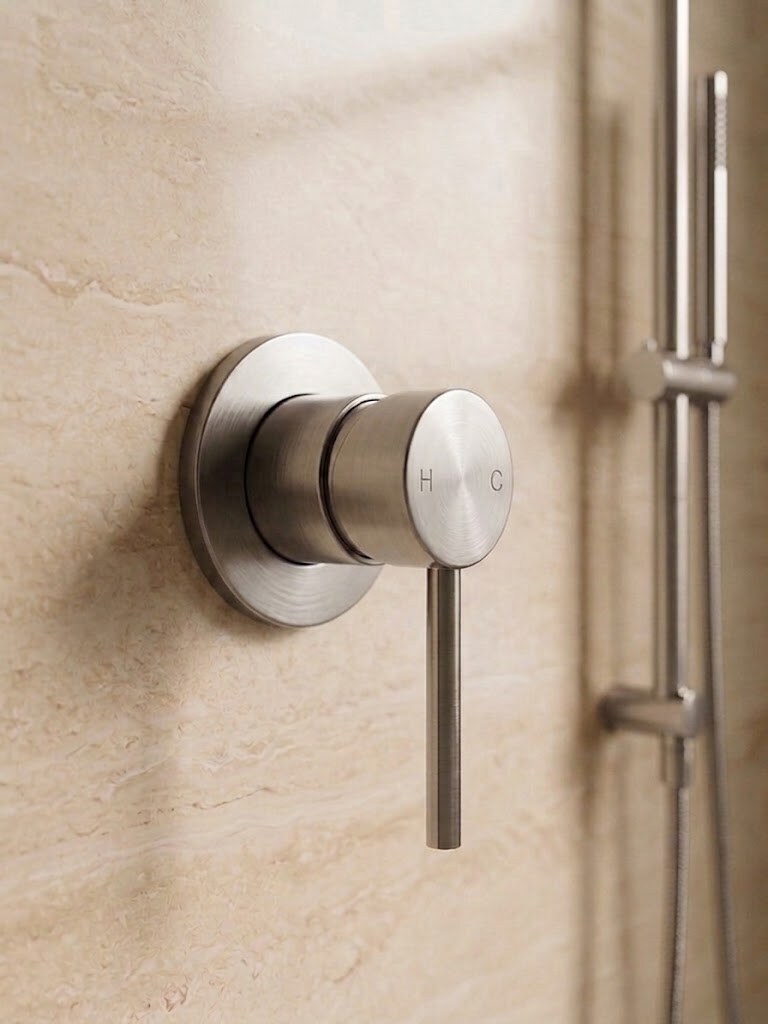

A concealed single-lever shower control with a stainless steel body, circular wall plate, engraved temperature indicators and refined pin handle.
Specifications
- Montague code
- MC-SM-003
- Type
- Concealed shower mixer
- Control
- Single lever with refined pin handle
- Body
- Stainless steel
- Mounting
- Concealed wall

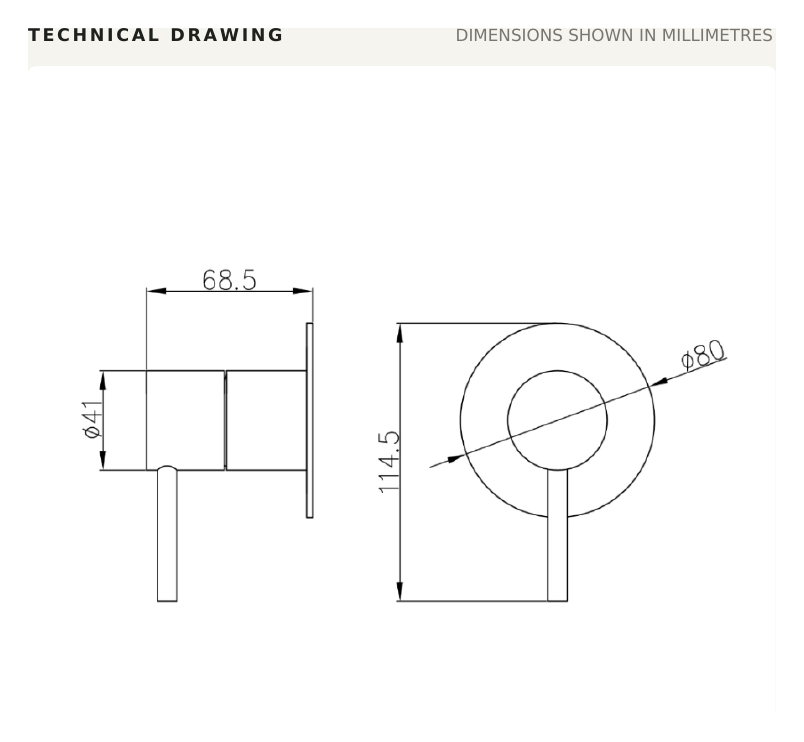

- Plate diameter
- 80 mm
- Overall height
- 114.5 mm
- Projection
- 68.5 mm
- Control diameter
- 41 mm
- Before installation
- Confirm valve-body dimensions, connection size, operating pressure and required wall depth
Materials
- Stainless steel body
- Stainless steel finish
Compliance
- WELS
- Not applicable to mixer control · verify the connected shower outlet separately
- WaterMark certificate
- 026610 · active to 25 Oct 2030
- Standard
- AS 3718:2021
- Lead free
- Yes
- DtS installation
- Yes
Warranty
10-year replacement warranty with a 1-year parts warranty. Labour, removal and reinstallation are not included under the voluntary warranty unless required under the Australian Consumer Law. These benefits are additional to rights and remedies under the Australian Consumer Law. See our Warranty page for full terms, eligibility, exclusions and how to make a claim.
Concealed in-wall shower mixer
Use this stainless steel concealed mixer as part of a streamlined shower layout, or compare other options in our wall mixer and in-wall mixer collection and shower tapware range.
Availability
In stock. Dispatches within 1–2 business days.
Choose options
Complete your bathroom
Build a matching bathroom package
Choose tapware and accessories in one coordinated finish, compare current product prices and add your selection to cart.
Compliance & technical information
- WaterMark licence number
- WMK26610
- Warranty
- 1-year parts warranty and 10-year replacement warranty.
